PPlus 1000

Vydáno: 07.07.2016

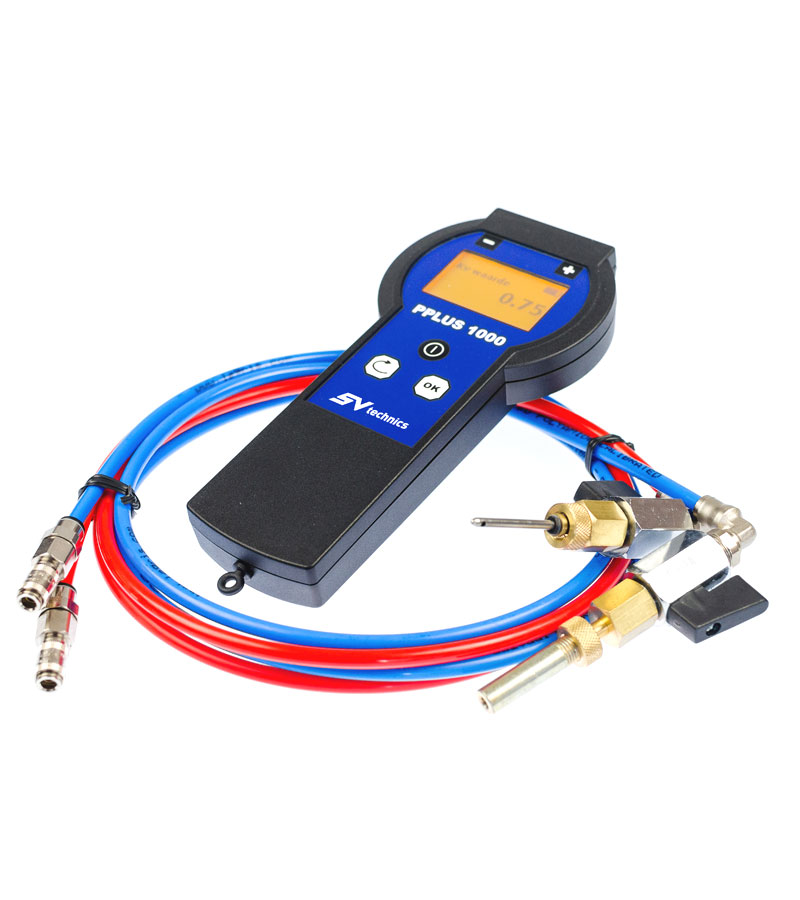

Balancing Measuring Device

Basic information

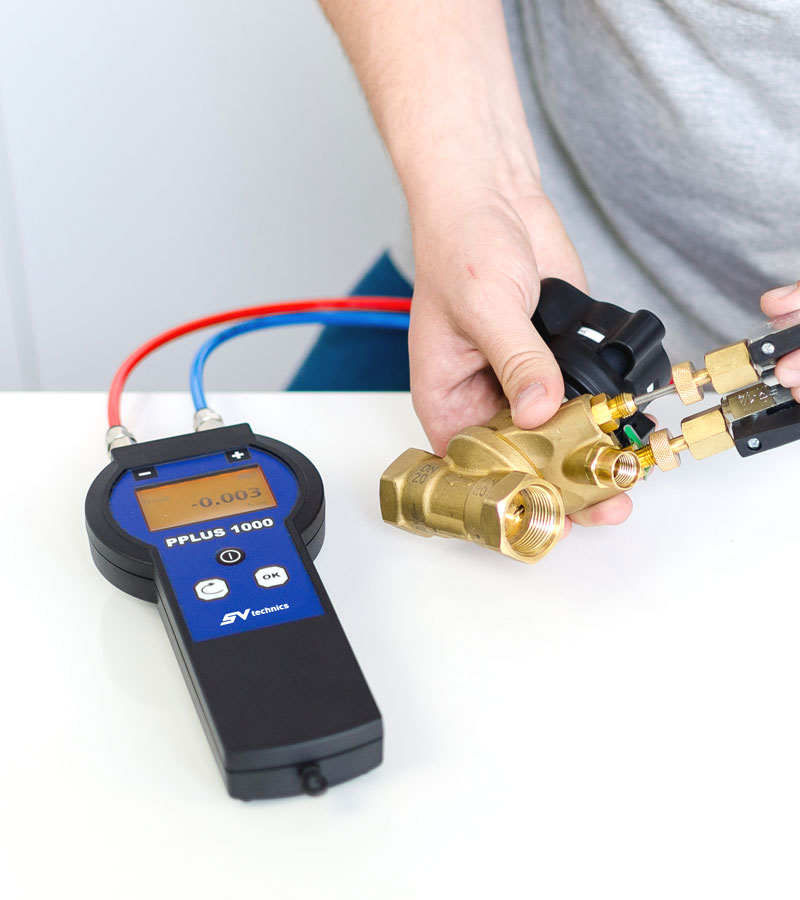

  • PPlus balancing device belongs to our basic line of the balancing measuring devices. With this device you
  • can measure differential pressure in the hydronic systems.
  • If you know the kv value, on the measured valve, you can insert the value in the device and on the display
  • you can see also the flow on the valve. The flow and pressure you can display with various units, witch you
  • can choose in the menu.
  • The device can comunicate with you in one from 10 possible languages.
  • In the menu on the first position you will find the zero function for the correction of the static pressure
  • influence. To put the zero follow the instruction on the display.

Technical details

Pressure Range10 bar *20 bar
Maximum Overpressurepositive side 15 bar *20 bar
negative side 10 bar *10bar
Nonlinearity and Hysteresis Error0.15% of pressure range
Temperature Error1.5% FSO of ambient and medium temperature
Medium Temperature-5 až 90 °C
Ambient Temperature-5 až 50 °C
Storage Temperature-5 až 50 °C
Pressure ConnectionR20 quick couplers
Power Consumption55 mA max
Battery2 x AA NiMH rechargeable batteries
Display backlight 128 x 64 pixel monochromatic
Keyboard3 keys
Pressure Units11 (Pa, hPa, kPa, MPa, mbar, bar, at, mmH2O, cmH2O, mH2O, mmHg, Psi, inH2O, ftH2O, inHg)
Flow Units11 (m3/s, m3/min, m3/h, l/s, USgal/s, USgal/m, USgal/h, UKgal/s, UKgal/m, UKgal/h)
KV range0-99999 s krokem 0.1
CoverIP65
Dimensions94 x 218 x 40 mm
Weight380 g včetně baterií

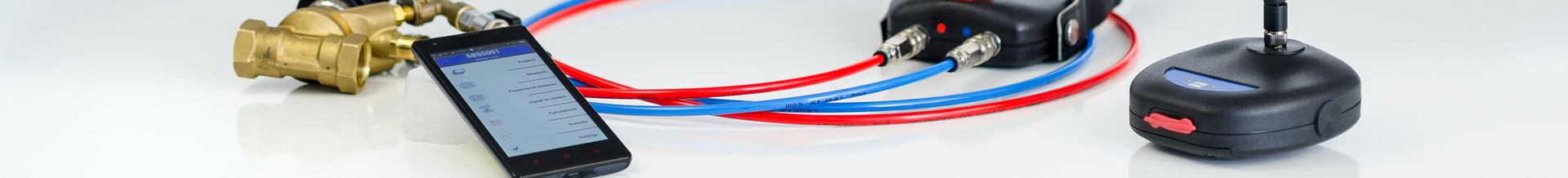

T650
